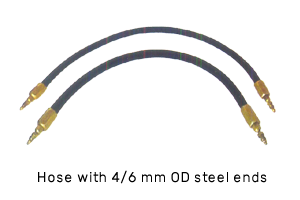

Hoses are used to connect points where flexibility is a must and also mechanical strength required. These hoses are available with 4 mm and 6mm steel end fittings with working pressure of 28 Kg/cm' to 200 Kg/cm2. OD of these hoses is 13mm and ID of 6.3 mm. The length of hose pipes can be supplied as per costumer requirement.

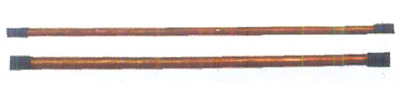

Steel Tubes : These are copper coated tube. 6 & 8 mm OD tube used as a main line &
4mm OD tube used as a secondary line.

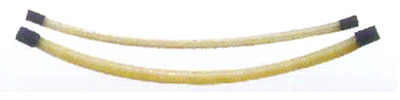

Lubrication Nylon Tubes : These are semi transparent flexible tube of material nylon 6. These
tube use where lubrication point is movable.
Steel Tube Lubrication Systems
Steel Tube ST-4 : OD-4mm, ID-2.6mm (copper coated)
Steel Tube ST-6 : OD-6mm, ID-4.6mm (copper coated)
Lubrication Nylon Tubes
Nylon Tube NT-6: OD-6mm, ID-4mm Material Nylon-6.
Nylon Tube NT-4: OD-4mm, ID-2mm Material Nylon-6 colour natural & transparent (suitable for moving points)
Mechanical Protection Springs (Safe Guards) of 4 mm & 6 mm OD Nylon Tube from Hot Chips, temperature & friction from M/c.

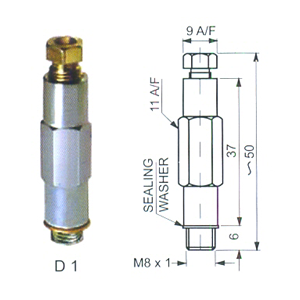

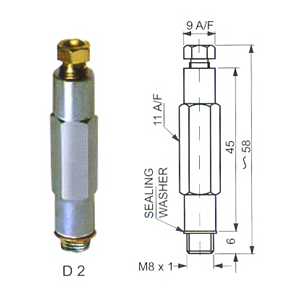

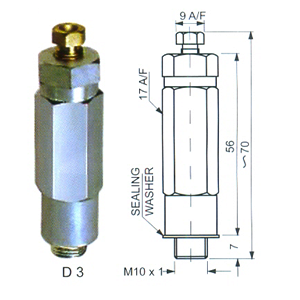

These are valve which eject metered amount of oil to the each lubrication point. It requires recharging time of minimum minute between two cycles. An individual oil distributor is required for individual lubrication point. In order to ensure that correct amount of lubrication point, oil distributor of correct dosage should be selected.
Technical Specification :
Note : We are Manufacturing injectors in both BRASS and M.S

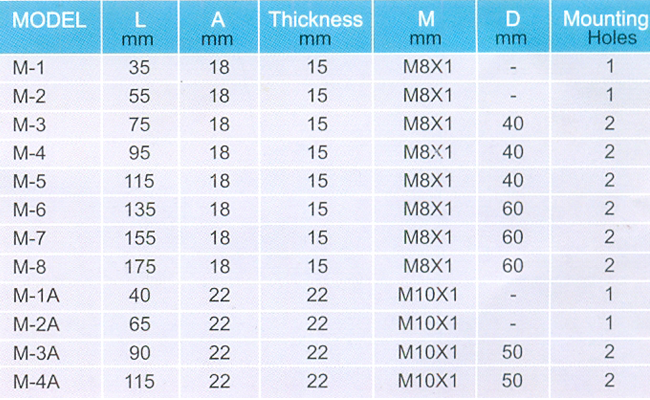

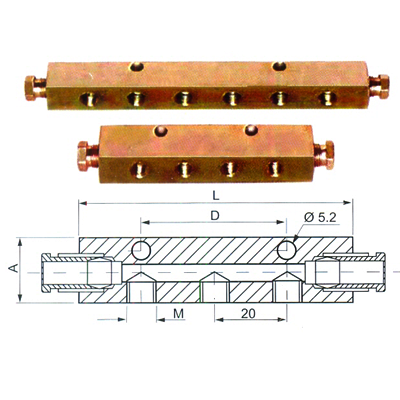

Lubrication System Manifolds are required for mounting of oil distributors. These having two parts of 6mm OD tube and few side outlets. Oil distributors are screwed directly on side outlets of Manifolds.
